AtlasFRANKFURT, DEGabriele Zanni, Morris Schüpbach, and Mario Affolter

The M 44 Masterplan represents Frankfurt’s strategic shift from passive growth to active urban governance, establishing a pioneering global framework for the digital age.

Frankfurt’s rise as a global data capital is a story of “path dependency,” evolving from the post-war stock exchange to the 1995 founding of the Deutscher Commercial Internet Exchange (DE-CIX). The 2021 Masterplan (M 44) marks a paradigm shift, transitioning from aesthetic planning to a strategy dictated by technical parametres. By addressing three critical bottlenecks—power grid capacity, fiber access, and district heating—the plan confines data loads to specific clusters like Sossenheim and Griesheim. This regulatory framework prevents urban sprawl, protects local businesses, and mandates waste heat recovery, effectively transforming data centres from isolated industrial bunkers into essential public utilities that heat the city.

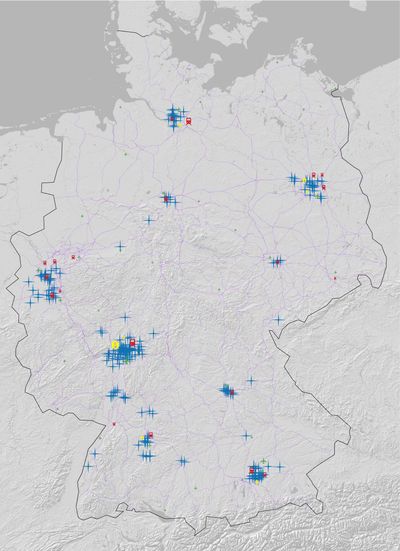

Frankfurt’s global dominance in the data landscape is not a coincidence, but the result of a unique convergence between its history of a stock exchange location, existing physical infrastructure and immaterial flows. Looking at the German network, it is evident how the city acts as a magnet for Europe’s primary “demand anchors”: the massive trading volumes of the Stock Exchange, the immense passenger flows of the international airport, and the intersection of the main railway and highway arteries create an ecosystem of unparalleled density. These anchors are not just transit points, but constant generators of data that require near-zero latency, making proximity to the DE-CIX and fibre optic nodes a vital necessity. Frankfurt emerges not merely as one node among many, but as the gravitational centre where transport and digital infrastructures fuse, justifying its role as a global pioneer in the regulation and development of the data centre industry.

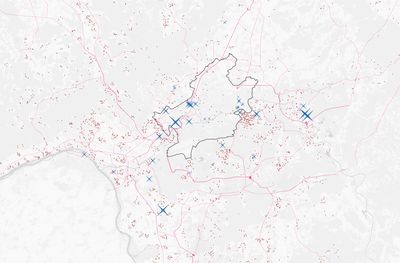

The proximity between data centres and high-voltage substations creates a high-stakes urban puzzle. The extreme concentration of power demand in these specific zones serves as the physical catalyst for the M 44 Masterplan. By visualising the overlap of power line infrastructure and massive server campuses, it becomes clear why the city had to formalise the “data parks” of Sossenheim, Griesheim, and Fechenheim. These areas are no longer just industrial zones, but critical infrastructure clusters where the demand for electricity reached a tipping point, forcing a new era of regulated urban planning to balance the grid’s capacity with the city’s growth.

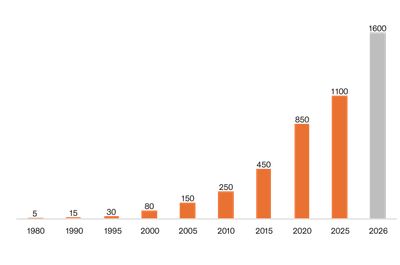

The staggering trajectory of Frankfurt’s energy consumption provides the ultimate justification for the M 44 regulatory intervention. In just a few decades, the city’s data centre cluster has transitioned from a marginal 5 Megawatt (MW) demand to a massive 1,100 MW load, a growth that has pushed the local power grid to its physical limits. This exponential curve highlights the shift from data centres as simple utility consumers to dominant urban power anchors. It is this sheer scale of energy intensity that necessitated the formalisation of the Sossenheim, Griesheim, and Fechenheim data centres—strategic zones designed to manage a level of electrical demand that now rivals that of entire metropolitan regions.

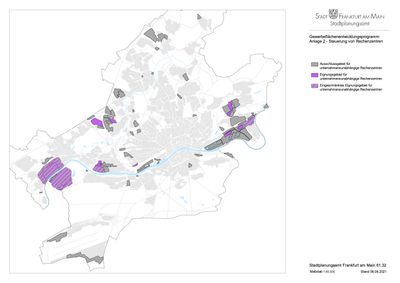

The original Frankfurt Masterplan (Image 1) is not a simple abstract zoning map, but the result of overlapping technical and environmental layers. By deconstructing the individual “rasters,” we can decode the rigorous logic behind the designation of the official “Dataparks.”

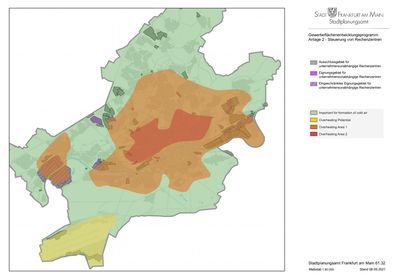

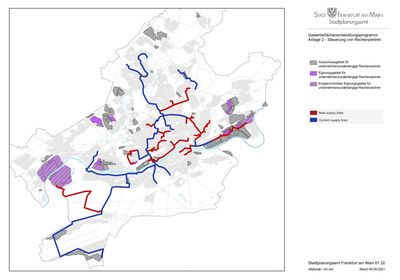

The first critical layer is the “Climate Plan” (Image 2), which maps urban heat islands to identify where the thermal impact of data centres would be unsustainable and where, instead, waste heat recovery can mitigate environmental stress. This environmental logic is inextricably linked to the Power Line Infrastructure (Image 3); the selection of the “Dataparks” directly follows the high-voltage backbone of the city, targeting nodes where the kV capacity can still support massive industrial loads. Finally, the strategy is completed by the “District Heating Network” raster (Image 4), which dictates the positioning of new clusters based on their ability to feed excess server heat back into the municipal grid. Together, these supply lines—both current and new—demonstrate that the Masterplan is a spatial engine designed to align the physics of the cloud with the resilient metabolism of the city.

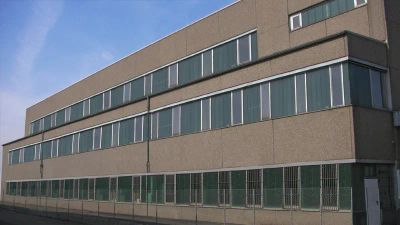

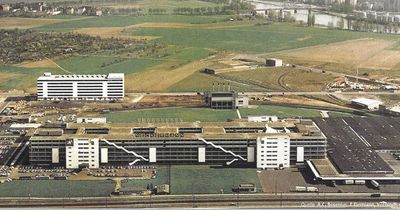

The redevelopment of the former Neckermann campus—a protected monument designed by Egon Eiermann—stands as the definitive case study of the M 44 Masterplan in action. To meet the city’s strict regulatory “bottlenecks,” Digital Realty (DR) had to move beyond the traditional data center model, turning technical constraints into community assets. By preserving the site’s Heritage Protection status, DR resolved the “poor urban integration” of the past, maintaining the historical identity of the Fechenheim district while repurposing an industrial icon.

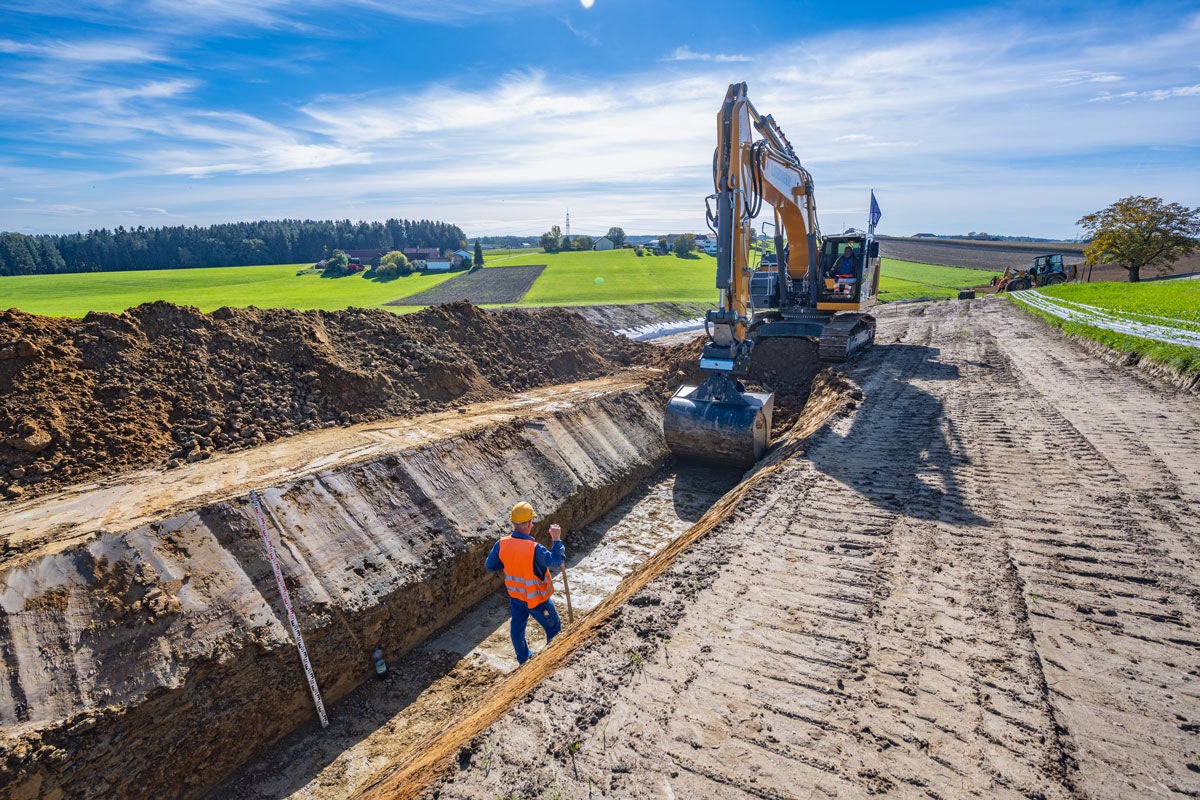

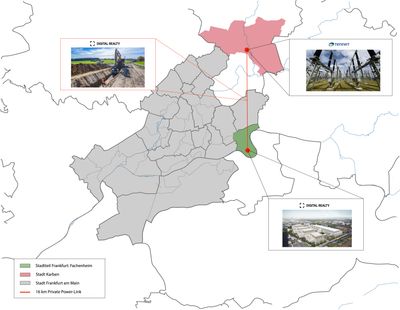

To secure energy sovereignty without saturating the local urban grid, the project established a strategic 16km private 110kV power line to the Karben substation. This massive investment not only fueled the campus but also offloaded pressure from Frankfurt’s municipal network, freeing up capacity for local residential and commercial growth. Furthermore, as mandated by the Masterplan, the site is engineered for Waste Heat Recovery, transforming server exhaust into a public utility for the city’s district heating network. In this synergy between Eiermann’s legacy and 21st-century infrastructure, the Masterplan proves that digital expansion can be a driver for heritage preservation, energy resilience, and social value.

Frankfurt’s GEP (Gewerbezentren-Entwicklungsprogramm) has established itself as a true benchmark for global clusters. Unlike other critical hubs such as Amsterdam or Dublin, which responded to resource saturation with sudden, total blocks, Frankfurt chose the path of proactive regulation.

This regulatory rigor guarantees stability for long-term investors but inevitably generates a centrifugal pull toward the outside. This has led to the emergence of a cross-border ecosystem, where workloads are distributed across strategically positioned “satellite” markets.

The Zurich data centre cluster has become an operational extension of the Frankfurt cluster. Itn solves logistical problems, such as the saturation of German electrical substations and the cost of land, while offering advantages such as extremely low latency, political stability outside the EU, and a more flexible regulatory framework.
